Type NumberMain Difference
M137A-x
USB Virtual COM(CP2102), x value=1~5
M137T-x
UART, x value=1~5

>>Features

  • Frequency: 13.56MHz
  • Embeded NXP transceive IC as RF base sation
  • Compliant with the standards of ISO14443 TYPE A/Mifare

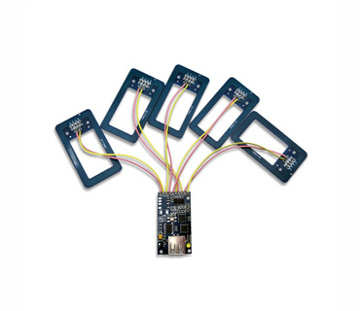

  • Up to 5 antennas can be supported at the same time, and user cost can be greatly reduced under certain circumstances.
  • Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
  • Dimension:50X28mm
  • Communication interface: TTL232/USB
  • Embeded with watchdog
  • Souce code samples for Android,Java,Javascript,VC,VB,C++ Builder,DELPHI,Power Builder,C#,CVI,etc
  • PC DEMO for users
  • Software can be customized according to the customer requirements
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Optional antennas

Type Number
Dimension
Operation Distance
T186Outside diameter: 31mm
20~30mm
T12063X35mm
30~40mm

>>Electrical Characteristics

  • Frequency: 13.56MHz
  • Operation distance:20~40mm(According to the tag)
  • Communication interface: UART/USB
  • Power Supply:DC5V
  • Current:Standard modules:5V/100mA
  • Temperature range:-10℃~+70℃
  • Demision:50X28mm

>>Main Difference

Type NumberMain DifferenceSupport Tags
M137A-x
USB Virtual COM(CP2102), x value=1~5
Mifare One S50,S70, FM11RF08 and compatible cards
M137T-x
UART, x value=1~5
Mifare One S50,S70, FM11RF08 and compatible cards
