Type NumberMain Difference

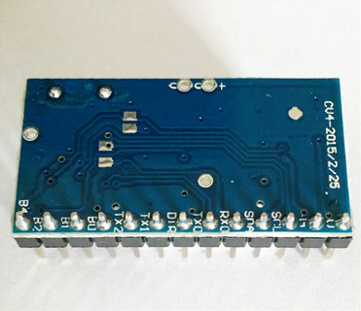

M106CPC-19200
UART, Baud 19200, DC5V
M106CPCL-19200
UART, Baud 19200, DC3.3V

>>Features

  • Frequency:125KHz
  • M106CPC embedded with 125KHz RF base station
  • UART interface,And  for getting the tag UID needs the request command from the host MCU
  • Multiple output format
  • Dimension:32.5X17.5mm(DIP26)
  • Support EM/TK4001 or EM/TK4100 and compatible cards
  • Embeded with watchdog
  • Interface:UART 19200
  • Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc

>>Antennas

Type Number
Dimension
Operation Distance
T106B
60X80mm
60~80mm
T106C
60X60mm
60~80mm
T106D
45X32mm
40~60mm
T106H
44X20mm
30~40mm
T106I
Outside Diameter:23.5mm,
 Inside Diameter:20mm

20~30mm
T106J
29X22mm
20~30mm
T106K
Outside Diameter: 10mm, Inside Diameter
4.5mm, Thickness: 3mm

20~30mm

>>Electrical Characteristics

  • Frequency: 125KHz
  • Operation distance :20~100mm(base on the antenna dimension)
  • Interface: UART19200
  • PowerSupply:DC5V or DC3.3V
  • Operation current:3.3V/29mA
  • Temperature range:-10℃~+70
  • Dimension:32.5X17.5mm(DIP26)
  • Pin to pin distance:2.54mm

>>Main Difference

Type NumberMain DifferenceSupport Tags
M106CPC-19200
UART, Baud 19200, DC5V
EM4001,EM4100,TKS28,etc
M106CPCL-19200
UART, Baud 19200, DC3.3V
EM4001,EM4100,TKS28,etc
