| Type Number | Main Difference |
| CustomerNo-X | This type of large antenna readers are customized according to different customer requirement, so the model is defined as customer name-X |
>>Features

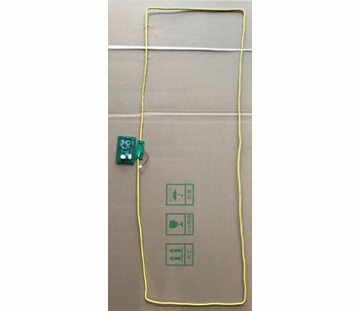

- The size of antenna can reach 70cm(length)x25cm(width)
- Frequency: 13.56MHz
- Embeded NXP transceive IC as RF base sation
- Compliant with the standards of ISO14443 TYPE A/TYPE B/ISO15693/Filica/Mifare/ISO7816
- Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
- Communication interface: TTL232/RS232/Wiegand
- Embeded with watchdog
- Souce code samples for C51,Android,Windows,Linux
- Software can be customized according to the customer requirements
- Special field of needing large area
>>Optional antennas
| Type Number | Dimension | Operation Distance |
>>Electrical Characteristics
- Frequency: 13.56MHz
- Operation distance:50~120mm(Testing base on standard S50)
- Power Supply:DC5V
- Current:Standard modules:5V/100mA
- Temperature range:-10℃～+70℃
- Demision:customization
>>Main Difference
| Type Number | Main Difference | Support Tags |
| CustomerNo-X | This type of large antenna readers are customized according to different customer requirement, so the model is defined as customer name-X | Mifare S50,S70,FM11RF08,Ultralight,Ntag,FM1208, FM1204,Felica,I code,HF Tag it and compatible cards |
