Type NumberMain Difference

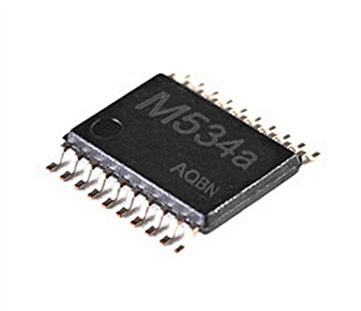

M534a
UART,Support 4pcs SAM cards
M532a
UART,Support 2pcs SAM cards

>>Features

  • Compliant with the standard of ISO7816
  • Can operate 4 pcs SAM/SIM cards(PSAM or ESAM)
  • Support SAM9600,SAM38400
  • Support T=0 protocol
  • Foot package: TSSOP20
  • Completed operation command set,and user needn't to care for the SAM complex control ,can implement all the operation for the SAM cards.
  • Souce code samples for C51,Android,Windows
  • Communication interface:IIC or UART
  • Embeded with watchdog
  • Aplication for the fields of transport,smart meters,etc which need Key Authentication

>>Electrical Characteristics

  • Compliant with the standard of ISO7816
  • Can operate 4 pcs SAM/SIM cards(PSAM or ESAM)
  • Power Supply: DC3.3V
  • Current: 5mA
  • Temperature range:-25℃~+85℃
  • Foot package:TSSOP20

>>Main Difference

Type NumberMain DifferenceSupport Tags
M534a
UART,Support 4pcs SAM cards
SAM9600,SAM38400,ISO7816-4 CPU card
(T=0)
M532a
UART,Support 2pcs SAM cards
SAM9600,SAM38400,ISO7816-4 CPU card
(T=0)
