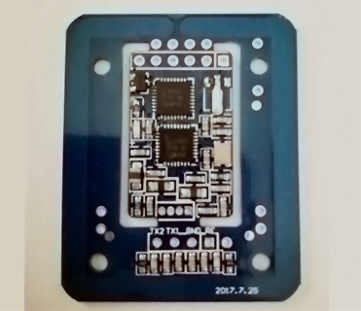

| Type Number | Main Difference |
| M104FATx | UART, 4 layer PCB, ISO14443A/ISO7816 |
| M104FAIx | IIC, 4 layer PCB, ISO14443A/ISO7816 |
| M104FETx | UART, 4 layer PCB, ISO14443A/B/ISO15693/ISO7816/Felica |
| M104FHTx | UART, 4 layer PCB, ISO15693 |
>>Features
- Frequency: 13.56MHz
- Embeded NXP transceive IC as RF base sation
- Compliant with the standards of ISO14443 TYPE A/Mifare/ISO7816
- 4 layer printed circuit board, and is beneficial to EMC
- The module has the function of detecting whether the M1 card is a cloned card (Only for UID,not for the block data)
- Support 2 pcs SAM（PSAM/ESAM/ISAM）
- Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
- Integrated with antenna
- Dimension include antenna:43.5X35.5mm
- Communication interface:IIC or UART
- Embeded with watchdog
- Souce code samples for C51,Android,Windows,Linux
- Software can be customized according to the customer requirements
- Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc
>>Optional antennas(Just user M104x Core module)
| Type Number | Dimension | Operation Distance |
| T182 | 32.5X17.5mm | 20~30mm |
|
T186 | Outside diameter:31mm | 20~30mm |
| T101 | 65X59mm | 50~70mm |
| T102 | 41X42mm | 30~40mm |
| T105 | 128X142mm | 80~100mm |
| T107 | 192X155mm | 90~120mm |
| T120 | 63X35mm | 30~40mm |
>>Electrical Characteristics
- Frequency: 13.56MHz
- Operation distance:40~60mm(Testing base on standard S50)
- Power Supply:DC3.3V/DC5V
- Current:Standard modules:3.3V/35mA(High Power Modules:3.3V/90mA)
- Temperature range: -10℃～+70℃
- Demision:43.5X35.5mm(Intergrated with antenna)
- Pin to pin distance:2.54mm
>>Main Difference
| Type Number | Main Difference | Support Tags |
| M104FATV3 | DC3.3V, Low Power, Read and Write, UART，ISO14443 type A/Mifare/ISO7816 | Mifare S50,S70,FM11RF08,FM1208,FM1204, DesifreEV1,Ultralight,Ntag, PSAM9600,PSAM38400 and compatible cards |
| M104FATV5 | DC5V, Low Power, Read and Write, UART，ISO14443 type A/Mifare/ISO7816 | Mifare S50,S70,FM11RF08,FM1208,FM1204, DesifreEV1,Ultralight,Ntag, PSAM9600,PSAM38400 and compatible cards |
| M104FATV3B | DC3.3V, High Power, Read and Write, UART，ISO14443 type A/Mifare/ISO7816 | Mifare S50,S70,FM11RF08,FM1208,FM1204, DesifreEV1,Ultralight,Ntag, PSAM9600,PSAM38400 and compatible cards |
| M104FATV5B | DC5V, High Power, Read and Write, UART，ISO14443 type A/Mifare/ISO7816 | Mifare S50,S70,FM11RF08,FM1208,FM1204, DesifreEV1,Ultralight,Ntag, PSAM9600,PSAM38400 and compatible cards |
| M104FAIV3 | DC3.3V, Low Power, Read and Write, IIC，ISO14443 type A/Mifare/ISO7816 | Mifare S50,S70,FM11RF08,FM1208,FM1204, DesifreEV1,Ultralight,Ntag, PSAM9600,PSAM38400 and compatible cards |
| M104FAIV5 | DC5V, Low Power, Read and Write, IIC，ISO14443 type A/Mifare/ISO7816 | Mifare S50,S70,FM11RF08,FM1208,FM1204, DesifreEV1,Ultralight,Ntag, PSAM9600,PSAM38400 and compatible cards |
| M104FAIV3B | DC3.3V, High Power, Read and Write, IIC，ISO14443 type A/Mifare/ISO7816 | Mifare S50,S70,FM11RF08,FM1208,FM1204, DesifreEV1,Ultralight,Ntag, PSAM9600,PSAM38400 and compatible cards |
| M104FAIV5B | DC5V, High Power, Read and Write, IIC，ISO14443 type A/Mifare/ISO7816 | Mifare S50,S70,FM11RF08,FM1208,FM1204, DesifreEV1,Ultralight,Ntag, PSAM9600,PSAM38400 and compatible cards |
| M104FETV3B | DC3.3V, High Power, Read and Write, UART，ISO14443 type A/Mifare/ISO14443 type B/ISO15693/ISO7816/Felica | Mifare S50,S70,FM11RF08, Ultralight,Ntag203,213,215, 216, FM1208, DesfireEV1, D21,D41,D81,T=CL TYPE A CPU, PSAM9600, PSAM38400,SRI512,SRIX4K, T=CL TYPE B CPU,I CODE 2,HF Tag it Felica(only UID) and compatible cards |
| M104FETV5B | DC5V, High Power, Read and Write, UART，ISO14443 type A/Mifare/ISO14443 type B/ISO15693/ISO7816/Felica | Mifare S50,S70,FM11RF08, Ultralight,Ntag203,213,215, 216, FM1208, DesfireEV1, D21,D41,D81,T=CL TYPE A CPU, PSAM9600, PSAM38400,SRI512,SRIX4K, T=CL TYPE B CPU,I CODE 2,HF Tag it Felica(only UID) and compatible cards |
| M104FHTV3B | DC3.3V, High Power, Read and Write, UART,ISO15693 | I CODE 2,HF Tag it and compatible cards |
| M104FHTV5B | DC5V, High Power, Read and Write, UART,ISO15693 | I CODE 2,HF Tag it and compatible cards |
