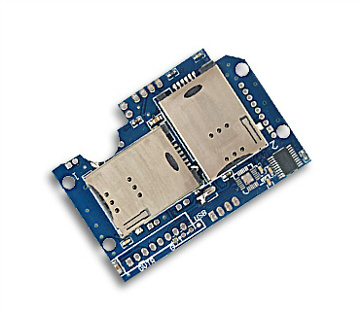

Type NumberMain Difference
BZ536Bx
Embeded 2 PSAM connectors
BZ536Cx
Embeded 2 PSAM connectors+1 IC card connector

>>Features

  • Compliant with the standard of ISO7816
  • Support SAM9600,SAM38400,SAM115200
  • Support T=0,T=1 protocol
  • Completed operation command set,and user needn't to care for the SAM complex control ,can implement all the operation for the SAM cards.
  • Souce code samples for C51,Android,Windows
  • Communication interface:IIC/UART/USB
  • Embeded with watchdog
  • Aplication for the fields of transport,smart meters,etc which need Key Authentication

>>Electrical Characteristics

  • Compliant with the standard of ISO7816
  • Power Supply: DC5V
  • Current: 10mA
  • Temperature range:-25℃~+85℃

>>Main Difference

Type NumberMain DifferenceSupport Tags
BZ536BU
USB+Embeded 2 PSAM connectors
SAM9600,SAM38400 T=0/T=1
BZ536BT
UART+Embeded 2 PSAM connectors
SAM9600,SAM38400 T=0/T=1
BZ536BI
IIC+Embeded 2 PSAM connectors
SAM9600,SAM38400 T=0/T=1
BZ536CU
USB+Embeded 2 PSAM connectors+1 IC card connector
SAM9600,SAM38400,ISO7816-4 CPU card
T=0/T=1

BZ536CT
UART+Embeded 2 PSAM connectors+1 IC card connector
SAM9600,SAM38400,ISO7816-4 CPU card
T=0/T=1

BZ536CI
IIC+Embeded 2 PSAM connectors+1 IC card connector
SAM9600,SAM38400,ISO7816-4 CPU card
T=0/T=1
